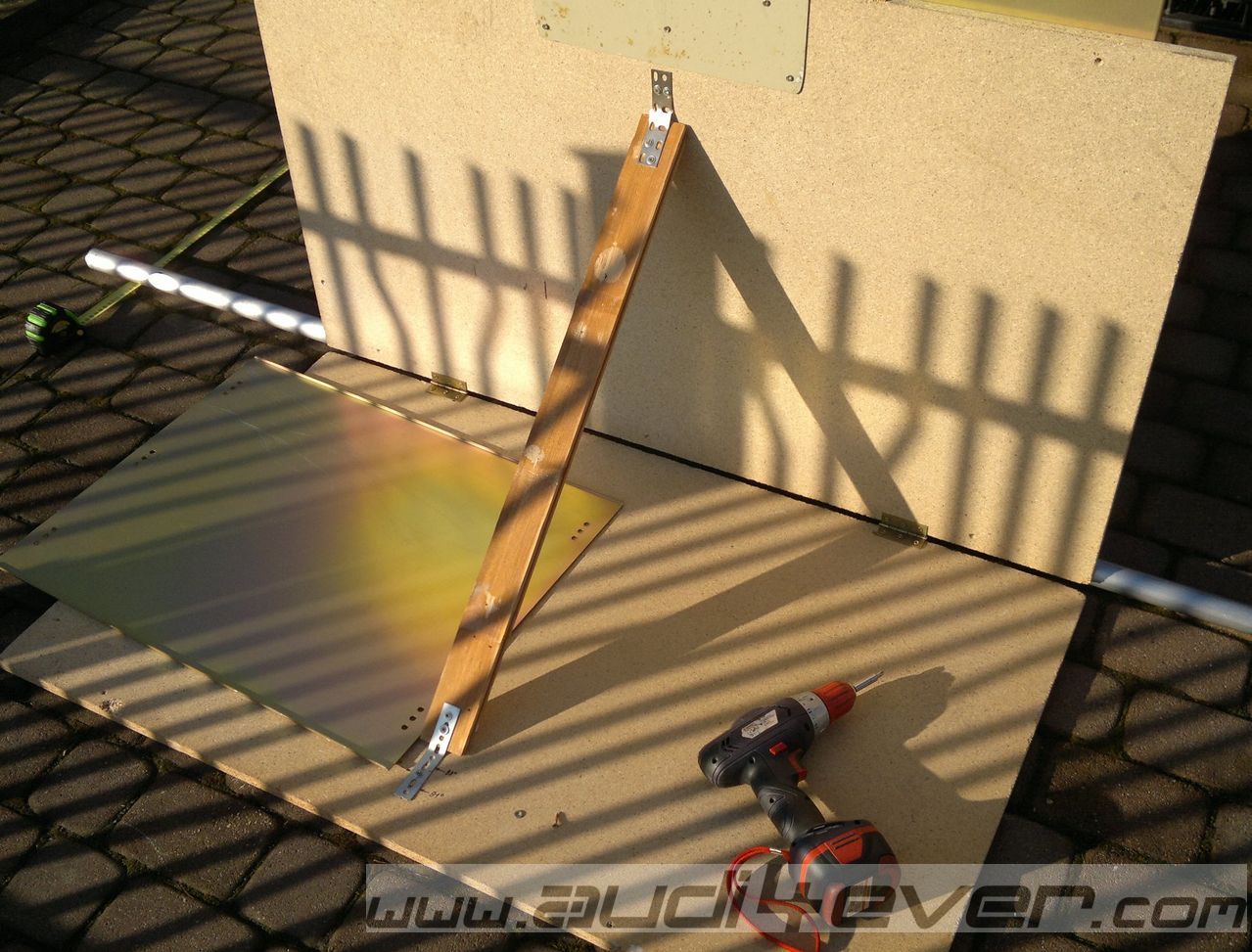

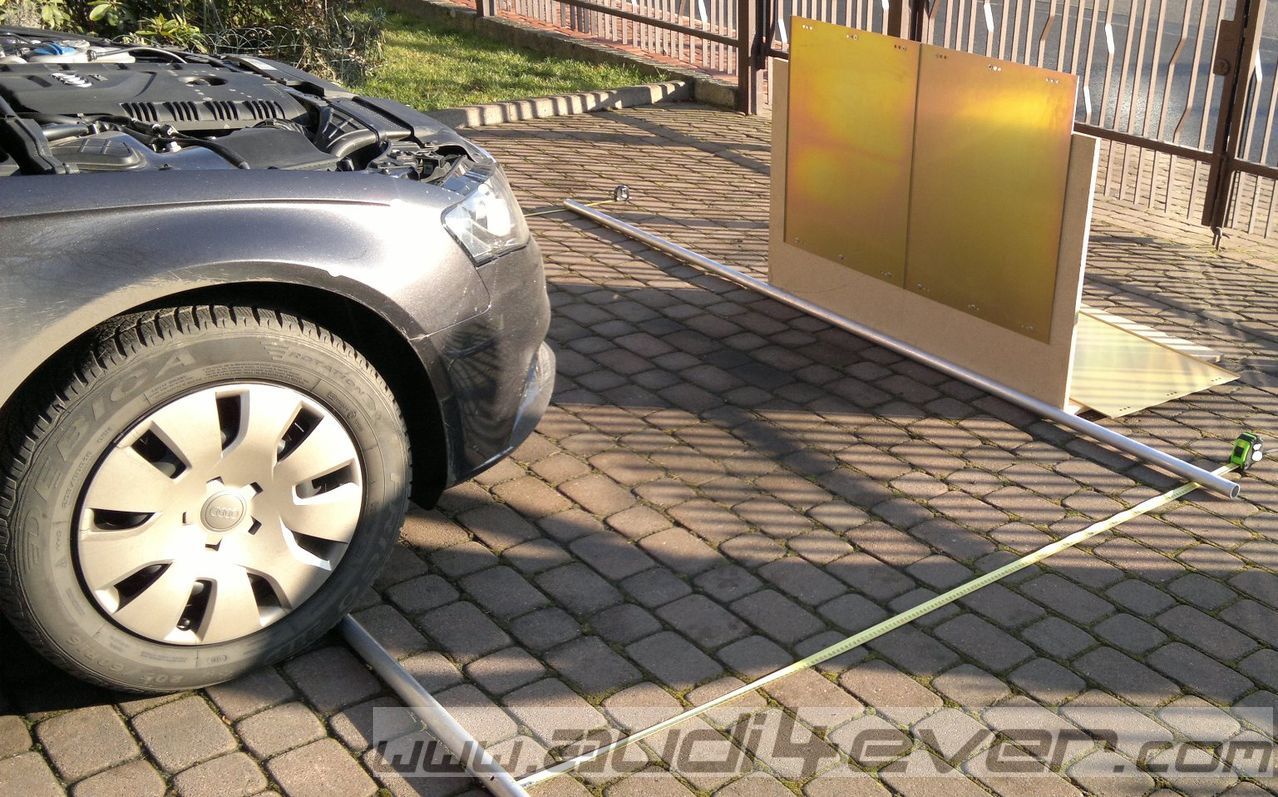

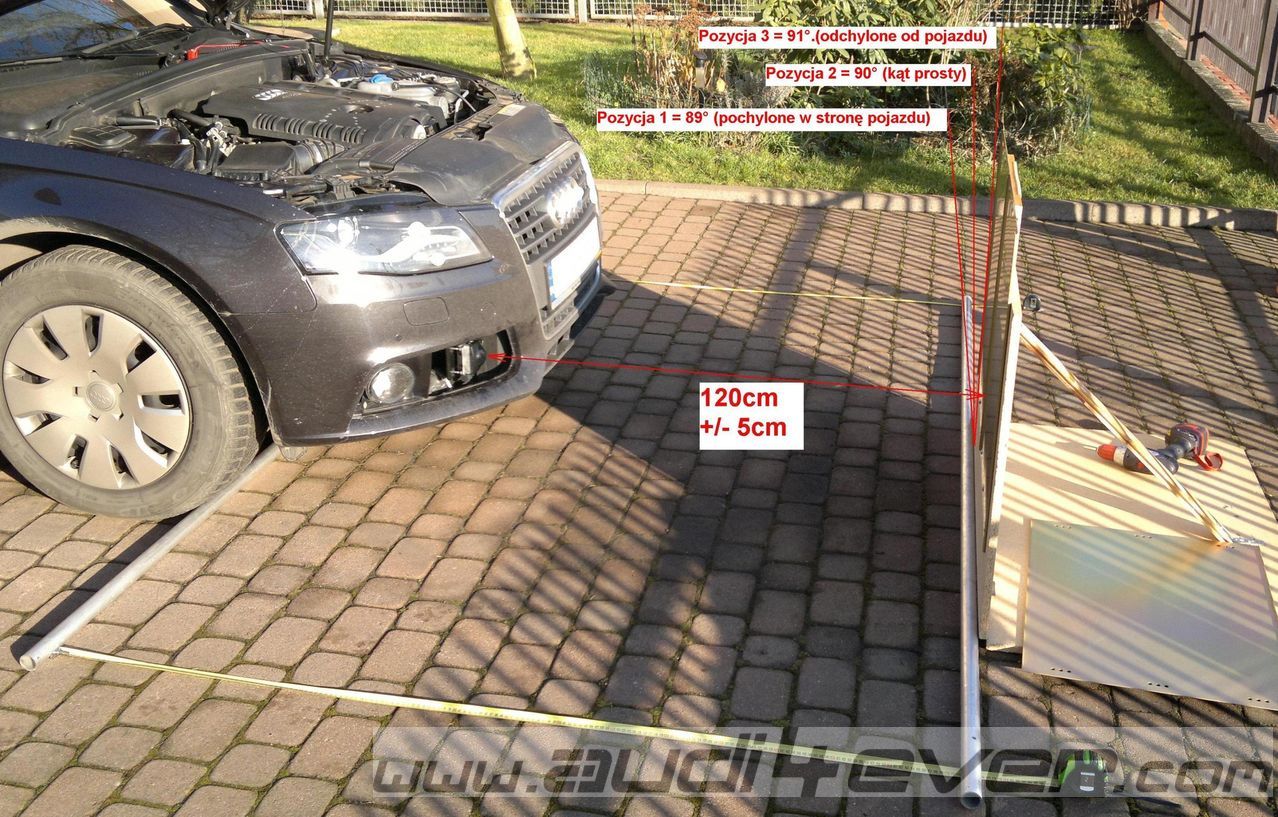

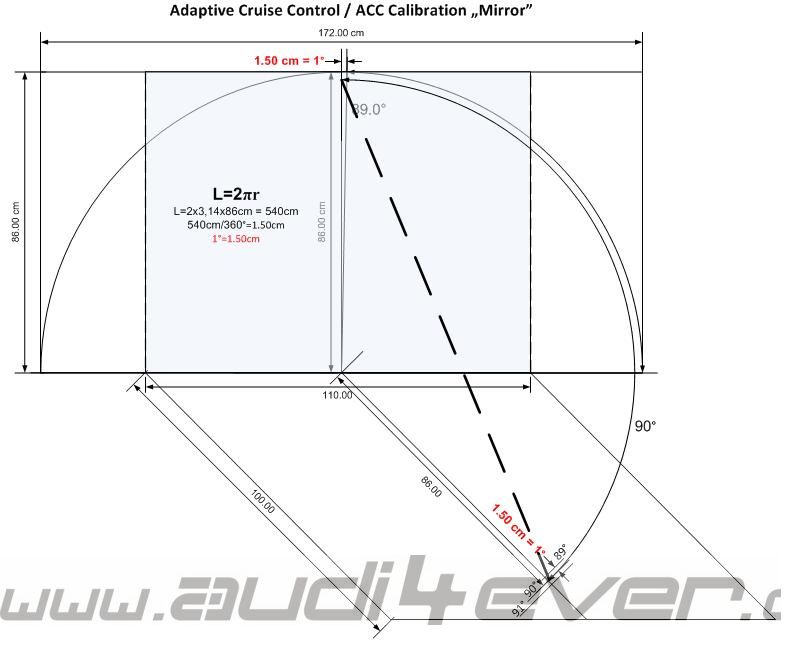

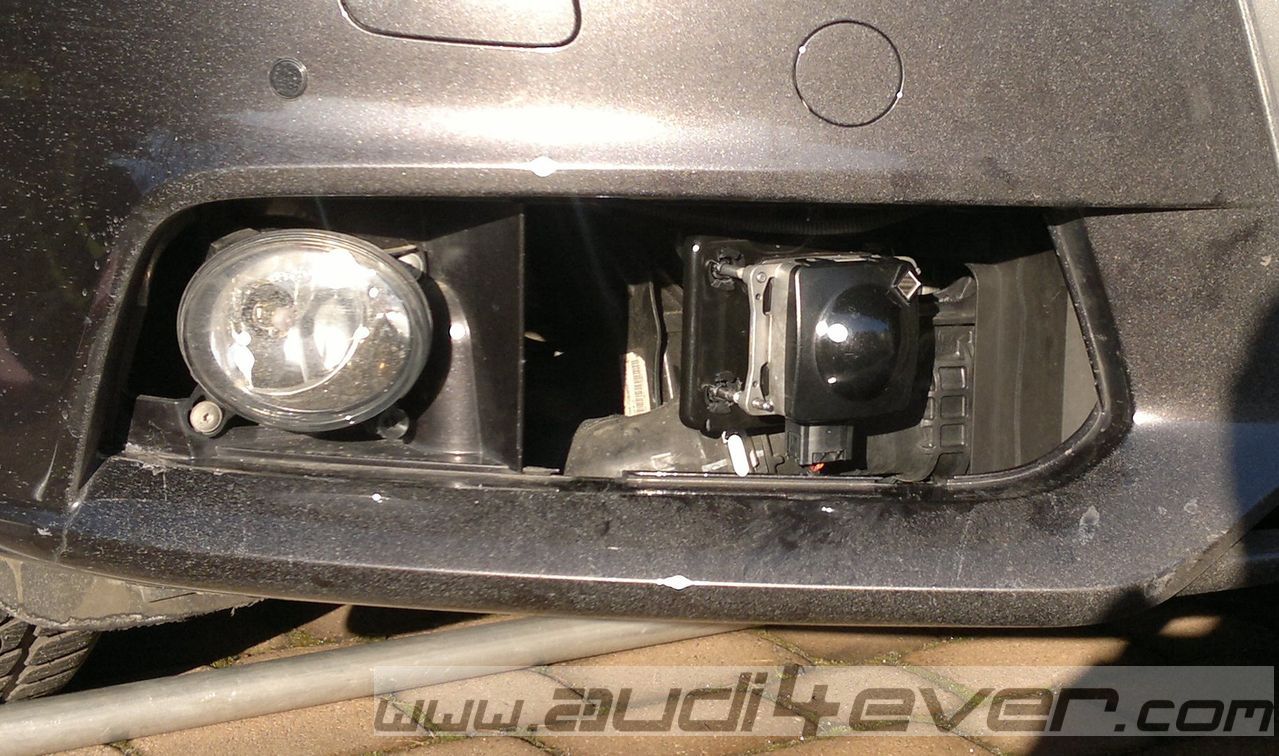

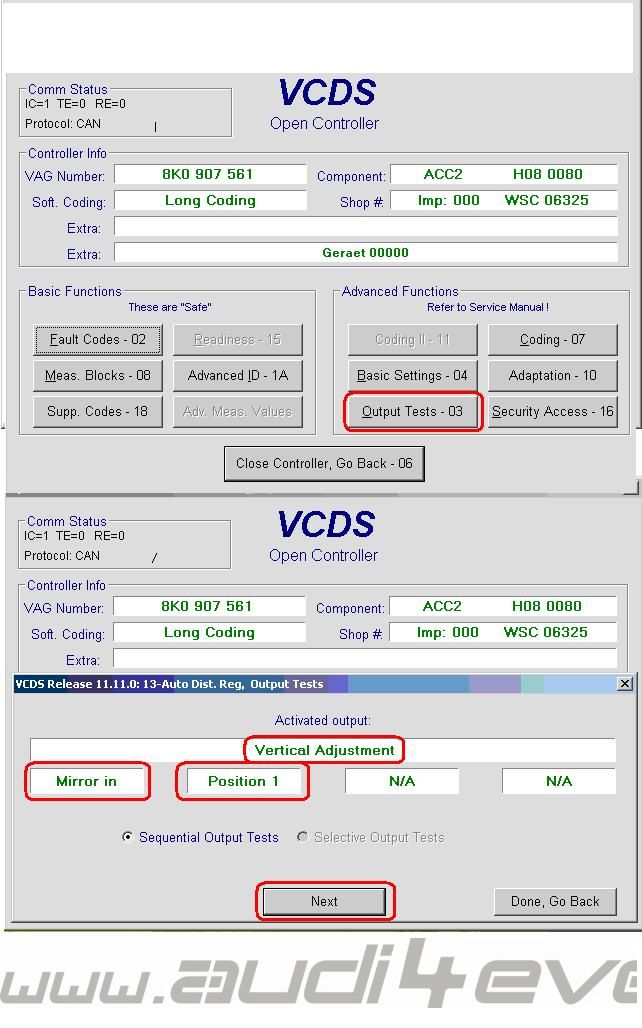

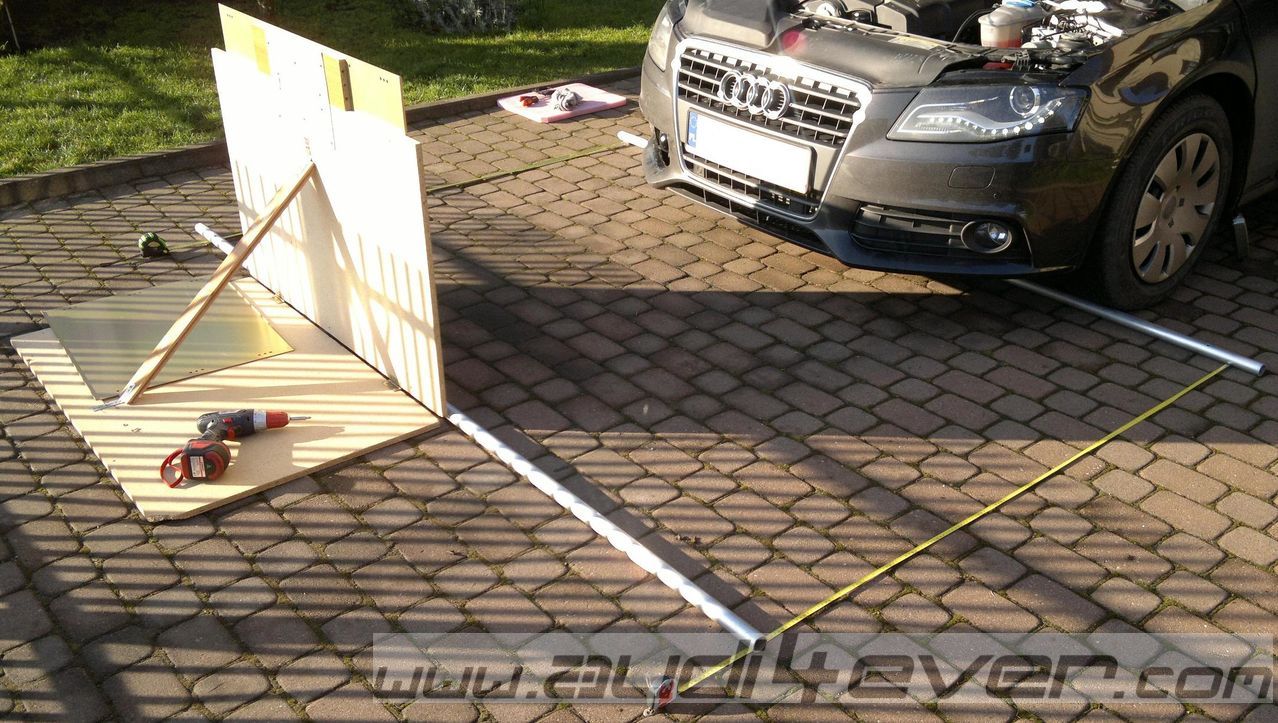

ACC Calibration / Adaptive Cruise Control / Audi A4 A5 Q5 / Distronic / ACC Audi / ACC Skoda / ACC VW / ACC Seat As per given instruction within the thread audi4ever forum I have built a “mirror” (about 1100mm x 800mm), from the reflection side I have attached two pieces of plain sheet metal which reflects the radar beam (76,5Ghz) in three different vertical positions: Position 1 = 89° (inclined toward the car) Position 2 = 90° (straight angle) Position 3 = 91° (declined from the car) In my case I have calculated that 1°shift can be achieved by move of the “mirror” support about 15mm towards front or backwards at the base of wooden plate, (no need of digital protractor). „Mirror” has to placed perpendicular, central, 120cm from the radar: Remove the radar from plastic supports and set all three screws to 43mm as per attached drawing – initial position to start calibration. With interface VCDS 908.1 (HW + SW version, higher VCDS releases do not support calibration) - 13: Auto Dist. Reg (J428)- Output Tests-03 – execute orders given by the guided calibration program and set „mirror” as requested, position 1, 3, 2 and turn relevant screw 1 or 2 in right or left direction as per given command. I have made 3.5mm key form the 4mm bolt – I have treated the bolt head with hammer several times In my case I have run entire calibration process with VAS5054A – GUIDED FUNCTIONS – (select vehicle type) – 13 Auto Dist. Reg (J428)- – Settings – and step by step shift the “mirror” and turn bolts 1 or 2 left/right as requested. To reset misalignment angle go to – Basic settings - 3. Reset misalignment angle The reset misalignment angle can be checked in measured value block 2, zone 1. NOTE after calibration the value will not change! The misalignment angle will only be recalculated and stored in the ACC control unit when the vehicle is driven with the ACC active, i.e. the radar sensor must be adapted to a preceding vehicle, recalculated and then stored in the ACC control unit -J428. Perform drive close to the potential object, repeat several drives. "Measured value block 2 zone 1" of the ACC control unit indicates whether the sensor is misaligned. If the misalignment angle is in the range -0.8° to 0.8°, the sensor does not need to be adjusted In my case after 30km of driving the original misalignment angle -1,732° was changed/recalculated to -0,32° what allowed to clear the alarm from he Radar - 00234 - Sensor for Automatic Distance Regulation Misadjusted All was performed with Component Protection active on the radar – so ACC with Unavailable status. After visit at Audi garage and Component Protection removal from the radar sensor ACC fully function ?.Every next drive with active ACC results with new recalculation of misalignment angle. After several days misalignment angle reduced to -0.110°. Following alarms will clears after Component Protection is removed for radar sensor : 01-Engine; Fault :4330 - Function Restriction due to Received Malfunction Value U1113 00 [039] 13-Auto Dist. Reg; Fault: 02095 – Component Protection Active For now all works well with original Instrument Cluster. Pending to retrofit original Instrument Cluster to full ACC mode.
